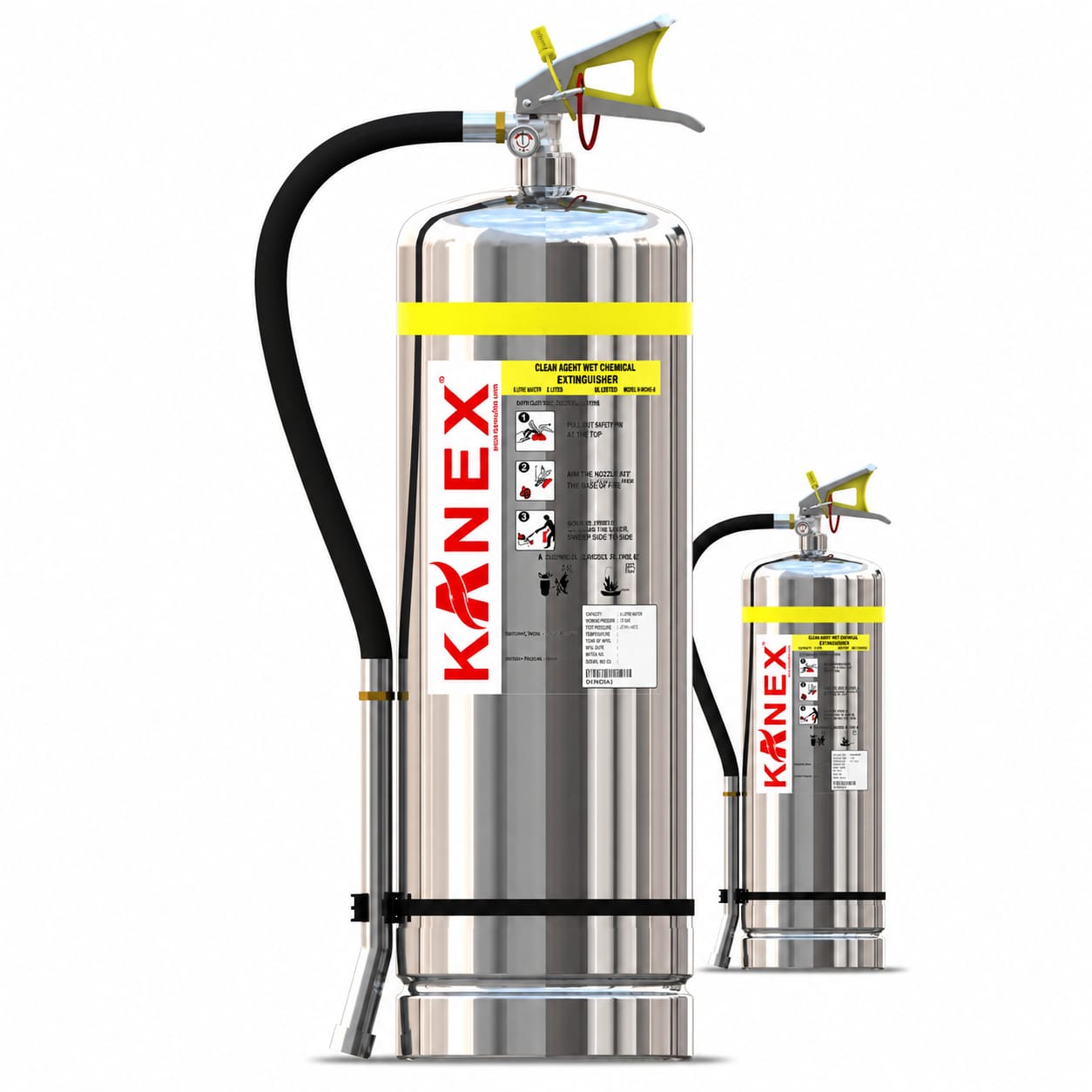

- High-quality Wet Chemical Agent
- Works on the principle of Saponification for cooking oil and grease fires
- Unique Gauge Testing System (UGTS) mechanism
- Smooth & polished stainless steel body
- Controlled discharge through brass nickel-plated valve with squeeze operation
- Latest CE marked construction
- Tamper seal to detect any mishandling
- Anti-corrosive phosphate treatment of cylinders
- Manufactured using durable high-quality materials
- Large loop stainless steel pull pin
- Flexible EPDM hose
- Lever lock for better handling
- Barcode labeling for improved traceability
- Easy to maintain, recharge, and service
- Aluminum discharge nozzle for broad, low-velocity spray
- Minimizes splashing of burning oil during operation
- Ideal for commercial kitchens, restaurants, hotels, cafeterias, and food preparation areas
- Available Capacities: 2 Ltr, 3 Ltr, 6 Ltr & 9 Ltr
- Design: Hose & Nozzle
- Fire Class: K Class (Cooking Oil & Fat Fires)
- Operating Temperature: +5°C to +55°C
- Average Discharge: 95%
- Expelling Agent: Nitrogen (UHP Grade)
- Service / Max. Service / Test Pressure: 9 / 15 / 35 bar
- Mounting Bracket: Wall Bracket
- Approvals: BIS / CE (Model Dependent)
Capacity-wise Fire Ratings
- 2 Ltr: 5F
- 3 Ltr: 5F
- 6 Ltr: 25F
- 9 Ltr: 40F
Capacity-wise Dimensions & Weight
2 Ltr
- Height: 440 mm
- Diameter: 110 ± 10 mm
- Full Weight: 3.7 kg
3 Ltr
- Height: 500 mm
- Diameter: 140 ± 10 mm
- Full Weight: 5.5 kg
6 Ltr
- Height: 550 mm
- Diameter: 150 ± 10 mm
- Full Weight: 8.9 kg
9 Ltr
- Height: 620 mm
- Diameter: 180 ± 10 mm
- Full Weight: 13.5 kg
Capacity-wise Discharge Time
- 2 Ltr: 10 Sec.
- 3 Ltr: 12 Sec.
- 6 Ltr: 20 Sec.
- 9 Ltr: 30 Sec.
